Wood Working Machines

Our Wood Working Machines usually powered by 850W Servo motors and HSD Italy NEXCARV Spindle that is intended to process wood and are used extensively in woodworking.

CNC Router Machine

CNC Router Machine

X-axis Travel: The travel, or work area, of the X-axis.
User may specify either, both, or neither of the “At Least” and “No More Than” values. Products returned as matches will meet all specified criteria.

Y-axis Travel: The travel, or work area, of the Y-axis.
User may specify either, both, or neither of the “At Least” and “No More Than” values. Products returned as matches will meet all specified criteria.

Z-axis Travel: The travel, or work area, of the Z-axis.
User may specify either, both, or neither of the “At Least” and “No More Than” values. Products returned as matches will meet all specified criteria.

Maximum Speed: Maximum speed refers to the maximum traverse rate of the CNC router slides.
User may specify either, both, or neither of the “At Least” and “No More Than” values. Products returned as matches will meet all specified criteria.

Spindle Power: Spindle power refers to the power of the spindle carrying the cutting tool.
User may specify either, both, or neither of the “At Least” and “No More Than” values. Products returned as matches will meet all specified criteria.

Membrane Press

Membrane Press
  • Systems patented to HAKİ SABIR
  • Plc controlled automatic usage
  • Ergonomic lift system
  • Manufacture safety systems in accordance with CE standard
  • Homogeneous and economic heat distribution and control
  • Long life structure and higher product quality
  • Minimum wastage and time saving
  • Can press up to 30 cm thickness
  • Hot air circulation system
  • Process time is between 2-5 minutes
  • Plc usage options in Turkish, English and Russian
  • 2 years warranty with non-problematic equipment, machinery safety systems

Edge Bander Machine

Edge Bander Machine
Maximum thickness of work piece: 10 – 60 mm
Edge (tape) thickness: 0.5 – 3 mm
Glue pot capacity: 3 kg approximately
Heating elements: 2 KW
Mechanism for tape cutting: pneumatic
Control of tape cutting: foot switch
Machine dimensions ( LXWXH ): 1250 X 900 X 900 mm
Power: 0.5 HP

Panel Saw

Panel Saw
Dimension of Sliding Table: 3200 X 360 mm
Gross Cut Capacity: 3200 mm
Width of Cut between saw Blade And Rip Fence: 1250 mm
Saw Blade Diameter: 300 mm (250-300)
Height of Cut: 80 mm
Speed of Main Saw Spindle: 4000/6000rpm
Spindle Diameter: 30 mm
Tilting Saw Blade: 0-45°
Main Motor: 5.5 kw
Scoring Saw Blade Diameter: 120 mm
Speed of Scoring Saw Blade: 9000r/min
Scoring Spindle Diameter: 20 mm
Scoring Motor: 0.75kw
Overall Dimensions: 3250 x 3250 x 900mm

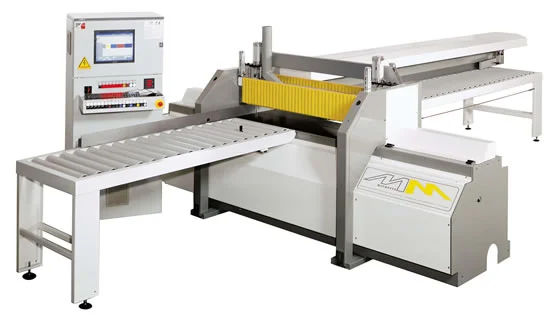

Post Forming

Post Forming
Maximum length of work piece: 2600 mm
Workpiece thickness: 16 / 100 mm
Maximum workpiece width: 200 mm
Maximum heating temperature: 200o C
Heating elements: 3 KW
Electric motor 3 phase: 0.5 HP
Machine dimension (l x b x h): 3600 x 660 x 1275
Approximately weight: 1100 kgs
Compressed air requirement: hp / kg cm2 3/7
