Description

Product Description

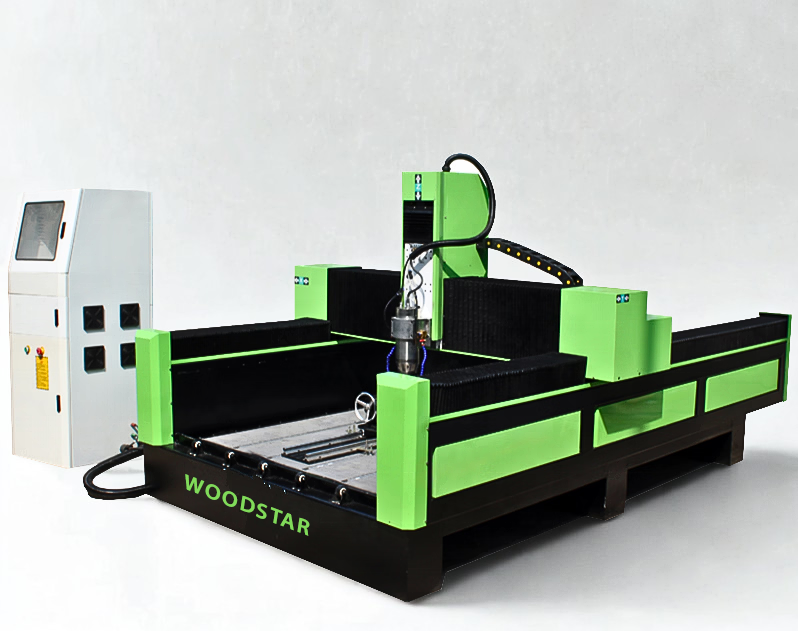

Looking for a reliable solution to carve stone, marble, and granite with unmatched precision? The 1530 Stone CNC Router is engineered to deliver high‑performance cutting and engraving for artisans, manufacturers, and businesses in the stone industry. Built with a heavy‑duty steel frame and advanced motion control, this machine ensures stability, accuracy, and long service life.



Single Head Stone Router Machine 1325S specifications:

Parameter	Details
Working Area (X, Y, Z)	1500 × 3000 × 300 mm
Positioning Accuracy (X, Y, Z)	±0.03 mm
Repositioning Accuracy	±0.03 mm
Table Surface	T-slot table with water bed
Z-axis Structure	Taiwan TBI Ball Screw
Guide Rail	Taiwan Hiwin linear guide
Max. Rapid Travel Rate	20,000 – 30,000 mm/min
Max. Working Speed	0 – 25,000 mm/min
Spindle Power	6.0 kW water-cooled spindle (3-phase)
Spindle Speed	0 – 24,000 RPM
Drive Motors	YAKO stepper system
Control System	DSP (RichAuto A11)
Command Language	G-code
Interface	USB
Flash Memory	128 MB (U Disk)
Resolution (X, Y)	<0.01 mm
Software Compatibility	ArtCAM, Type3, Ucancam
Working Voltage	AC 220V / 50–60 Hz
Operating Environment	Temperature: 0°–45° C



Key Features

• Robust Construction: Full welded steel frame with stress‑relief treatment for durability and vibration‑free operation.
• Large Working Area: 1500 × 3000 mm (5×10 ft) table size, ideal for large stone slabs and complex designs.
• High‑Power Spindle: Capable of cutting marble, granite, jade, bluestone, and other hard materials with ease.
• Advanced Control System: Gantry movement style ensures smooth, precise carving and engraving.
• Multi‑Material Capability: Works not only on stone but also ceramics, glass, PVC, acrylic, and aluminum‑plastic boards.



Applications

• Monument engraving and memorial stone carving
• Decorative interior works and architectural detailing
• Sign‑making and logo engraving on stone surfaces
• Artistic sculptures and customized stone furniture



Benefits

• Automation & Efficiency: Replaces manual carving, reducing labor costs and increasing productivity.
• Precision & Consistency: Delivers repeatable results for complex patterns and fine detailing.
• Versatility: Handles both heavy‑duty industrial projects and delicate artistic engravings.
• Long Service Life: Built to withstand continuous operation in demanding environments.

Why Choose the 1530 CNC Stone Router? Investing in the 1530 CNC Router means upgrading to a machine that combines strength, accuracy, and versatility. Whether you’re a stone workshop, construction company, or creative artisan, this router empowers you to achieve professional results with ease.

Overall, CNC machines, CNC carving machines are controlled by computer programs that dictate the movement of the cutting tool along different axes (typically X, Y, and Z axes). This enables precise control over the carving process. Fill Enquiry Form for Single Head Stone Router Machine 1530S  Price and to know more about Best CNC router in India.
