Product Description

A CNC router machine specifically designed for cutting, routing, and engraving various materials, primarily wood, functions as a computer-controlled machine. In the woodworking industry, woodworkers widely utilize Woodworking CNC Machine for various tasks such as cutting, shaping, and carving wood. Similarly, they can create intricate designs, patterns, and contours that would be difficult or impossible to achieve manually. Contact Us  to know about CNC Router Machine 1325 Price.

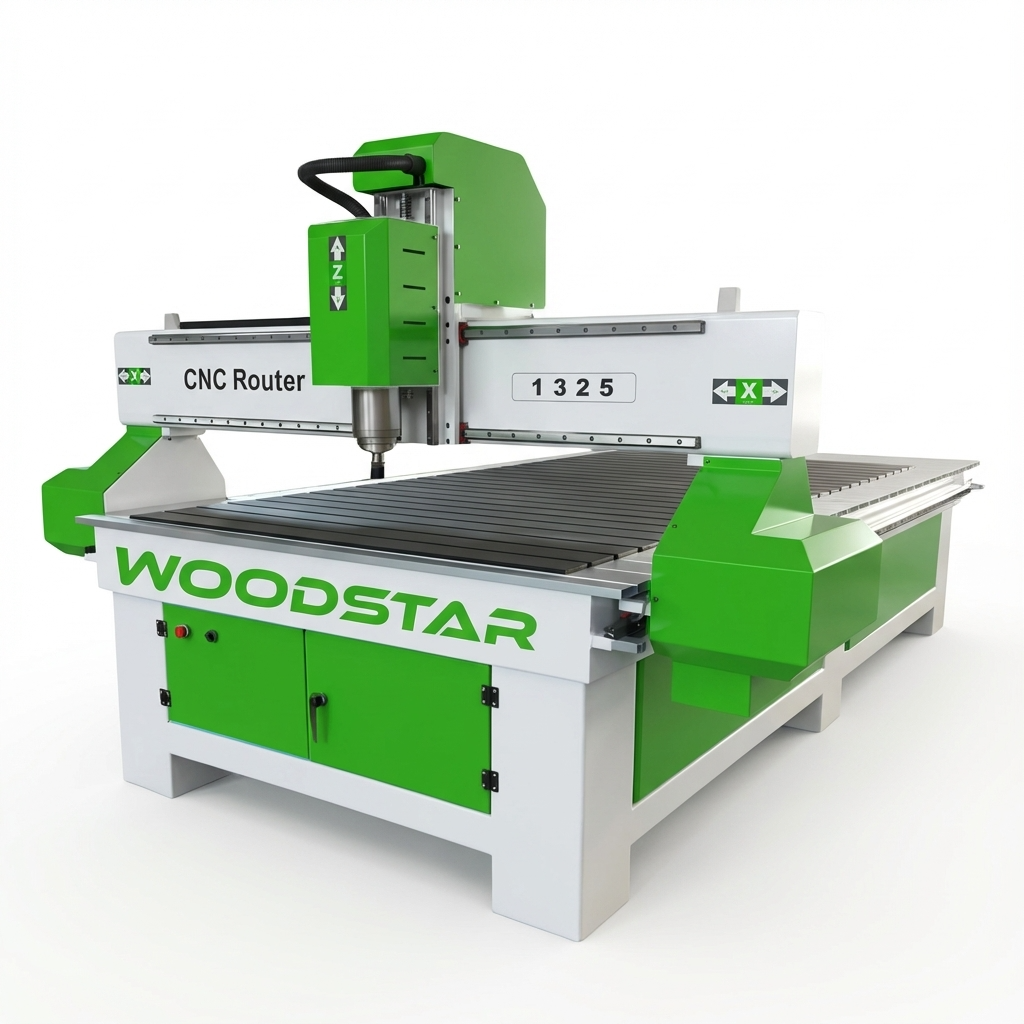

Woodstar CNC Router Machine 1325 specifications:

• Working Area: 1300×2500×280 mm,

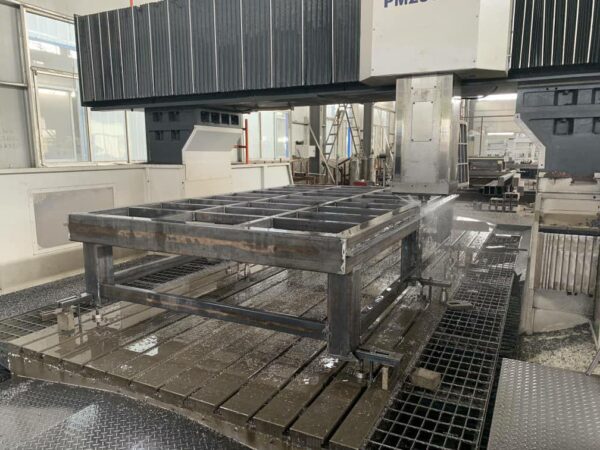

• Heavy Weld Tube Structure,
• Cast Side Support with 3 Tones Loading Capacity,
• Spindle Power:  2.2 kw / 3.5 kw / 4.5 kw / 6.0 kw / 7.5 kw,
• Spindle Type: Air Cooled / Water Cooled / ATC Spindle, 18,000 / 24,000 rpm,
• Spindle Brand: HQD / HSD Mechatronics / Hiteco Italy,
• INVT Taiwan / Innovance / ABB / Siemens VFD,
• Richauto A11 Plus / Weihong NK105 / Weihong NC-Studio CNC Control System,
• Drive & Motor Brand: Leadshine / Yako / Moons,
•  Stepper Drive and Nema 34 118 Stepper Motor 84 Kg-cm,
• Rapid Speed:  25,000 mm / min, Working Speed: 14,000 mm/ min,
• Taiwan Hiwin / THK 20 mm High Load Linear Rail and Linear Bearing,
• Taiwan TBI 25 mm z axis ball screw,
• Cable: German Lapp / Igus cables,
• 1.25 m Helical Harden Rack and Pinion.
• Transmission: Timing Belt Gearbox / Planetary Reducer Gearbox,
• Gearbox Brand: Japan Shimpo / Liming / Apex,

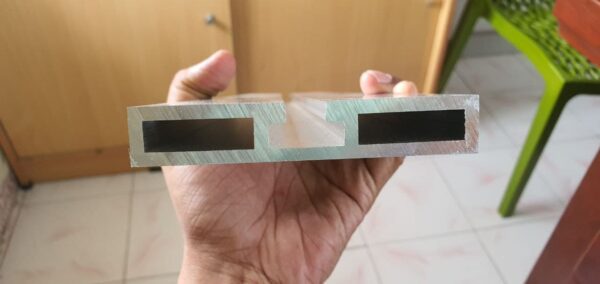

• Standard T-Slot Aluminium Profile 1.5 mm / 4.0 mm,
• Support Program: G Codes and M Codes,
• Software: Artcam, Aspire, DeskProto,
•  Lubrication: Manual / Automatic,
• Voltage 220 v, Single Phase 50hz,
• Standard tools and accessories include Allen key Toolbox, Ball Nose Tools 6 no’s, Spindle Spanner Set, 2 Collet, Collet Nut, Heavy Door Clamp 10 pcs, 2 Sensors,
• 12,000+ Designs (800 GB) include Single Doors, Double Door, Sofa, Pooja Door, Jali Cutting, ACP Cladding, Bell Cutting, Corner Design,
• Gross Weight 1500 kgs,
• Total Power 15.0 Hp,
• Overall dimension: 3200 x 2300 x 2300 mm.

🛠️ Stepper CNC Router – Precision Machining with Reliable Performance

Looking for a cost-effective and precise CNC machine for woodworking, signage, or light metal cutting? A Stepper CNC Router is the perfect solution for small businesses, hobbyists, and professional workshops that demand high-quality output with budget-friendly technology.

---

✅ What is a Stepper CNC Router?

A Stepper CNC Router is a computer-controlled cutting machine powered by stepper motors, which convert digital instructions into mechanical motion. These machines are designed to handle a wide range of materials including wood, MDF, acrylic, PVC, and soft metals.

Unlike servo motor systems, stepper motor-driven routers are known for their simplicity, affordability, and accuracy, making them ideal for precise 2D and 3D routing operations.

---

🌟 Key Features of Stepper CNC Routers:

• High Precision Stepper Motors: Delivers reliable, repeatable positioning for detailed carving and engraving.

• Robust Machine Structure: Heavy-duty steel frame ensures stability and reduces vibrations during operation.

• High-Speed Spindle: Typically equipped with a 3.5 kW spindle (air- or water-cooled), ideal for high-speed cutting.

• User-Friendly Controller: Operates using DSP or Mach3 controllers with USB support for easy file transfers.

• Compatible Software: Supports popular CAD/CAM software like ArtCAM, VCarve Pro, and Aspire.

• Multiple Table Options: T-slot and vacuum tables for secure material holding.

• Versatile Working Area: Available in sizes like 1325 (1300mm x 2500mm) for large sheets or custom projects.

---

🔧 Applications:

Stepper CNC routers are widely used in:

• Furniture Manufacturing

• Wood Carving & Sign Making

• Architectural Model Creation

• MDF Cutting & 3D Engraving

• Custom Interior Panels & Decor

---

💡 Why Choose a Stepper CNC Router?

• ✅ Affordable CNC Automation

• ✅ Easy to Maintain

• ✅ Ideal for Small to Medium Businesses

• ✅ Low Power Consumption

• ✅ Proven Reliability with Low Operating Costs

---

📦 Stepper CNC Router for Sale – Get the Best Deals

Looking to buy a high-quality stepper CNC router at a competitive price? We offer a wide selection of models suitable for woodworking, signage, and industrial applications. Contact us for specifications, pricing, and customization options.

🔍 Key Features:

• Motion Control: Powered by stepper motors and precision drivers (e.g., YAKO), ensuring smooth and accurate axis movement.

• Structure: Built with a heavy-duty welded steel frame for vibration-free performance and durability.

• Spindle: Equipped with air- or water-cooled spindles, typically 3.5 kW or higher, operating up to 24,000 RPM for high-speed cutting.

• Working Area: Common sizes include 1300×2500 mm (4×8 feet), with Z-axis depths up to 200–300 mm.

• Drive Mechanism: Uses helical rack and pinion or ballscrew systems on the X, Y, and Z axes for smooth linear motion.

• Controller: Operates via DSP handheld controllers (e.g., RichAuto A11) or PC-based systems with Mach3 or similar software.

• Guide Rails: Features HIWIN linear rails for high precision and long service life.

• Table Type: T-slot or vacuum table for flexible material holding.

• Software Support: Compatible with G-code and works with popular CAM software like ArtCAM, VCarve, Aspire, and Fusion 360.

---

✅ Advantages:

• Cost-effective automation for woodworking and signage industries.

• High accuracy and repeatability suitable for both simple cuts and complex 3D carvings.

• Easy to operate and maintain with widely available components.

• Ideal for cabinet making, furniture design, signage, prototyping, and custom woodwork.

Overall, Woodworking CNC Router Machine have revolutionized woodworking by offering efficiency, precision, and the ability to create intricate designs that were previously difficult to achieve manually. Moreover, Wood CNC Machine can work with a wide range of wood types, densities, and sizes. Furthermore, they are used in furniture manufacturing, cabinetry, sign-making, and decorative woodworking.

Fill Enquiry Form for Woodstar CNC Router Machine 1325 Price and to know more about CNC Router Machines.
