Description

Product Description

A CNC router machine specifically designed for cutting, routing, and engraving various materials, primarily wood, functions as a computer-controlled machine. In the woodworking industry, woodworkers widely utilize Woodworking CNC Machine for various tasks such as cutting, shaping, and carving wood. Similarly, they can create intricate designs, patterns, and contours that would be difficult or impossible to achieve manually. Contact Us  to know about CNC Router Machine 1325 Price.

Woodstar CNC Router Machine 6090 specifications:

• Working Area: 600×900×200 mm,
• Heavy Weld Tube Structure
• Spindle Power:  2.2 kw / 3.5 kw / 4.5 kw,
• Spindle Type: Air Cooled / Water Cooled, 18,000 / 24,000 rpm,
• Spindle Brand: HQD / HSD Mechatronics / Hiteco Italy,
• INVT Taiwan / Innovance / ABB / Siemens VFD,
• Richauto A11 Plus / Weihong NK105 / Weihong NC-Studio CNC Control System,
• Drive & Motor Brand: Leadshine / Yako / Moons,
•  Stepper Drive and Nema 34 118 Stepper Motor 84 Kg-cm,
• Rapid Speed:  25,000 mm / min, Working Speed: 14,000 mm/ min,
• Taiwan Hiwin / THK 20 mm High Load Linear Rail and Linear Bearing,
• Taiwan TBI 25 mm z axis ball screw,
• Cable: German Lapp / Igus cables,
• 1.25 m Helical Harden Rack and Pinion.
• Transmission: Timing Belt Gearbox / Planetary Reducer Gearbox,
• Gearbox Brand: Japan Shimpo / Liming / Apex,
• Standard T-Slot Aluminium Profile 1.5 mm / 4.0 mm,
• Support Program: G Codes and M Codes,
• Software: Artcam, Aspire, DeskProto,
•  Lubrication: Manual / Automatic,
• Voltage 220 v, Single Phase 50hz,
• Standard tools and accessories include Allen key Toolbox, Ball Nose Tools 6 no’s, Spindle Spanner Set, 2 Collet, Collet Nut, Heavy Door Clamp 10 pcs, 2 Sensors,
• 12,000+ Designs (800 GB) include Single Doors, Double Door, Sofa, Pooja Door, Jali Cutting, ACP Cladding, Bell Cutting, Corner Design,
• Gross Weight 800 kgs,
• Total Power 5.0 Hp,
• Overall dimension: 2300 x 2300 x 2300 mm.

🛠️ Stepper CNC Router – Precision Machining with Reliable Performance

Looking for a cost-effective and precise CNC machine for woodworking, signage, or light metal cutting? A Stepper CNC Router is the perfect solution for small businesses, hobbyists, and professional workshops that demand high-quality output with budget-friendly technology.

---

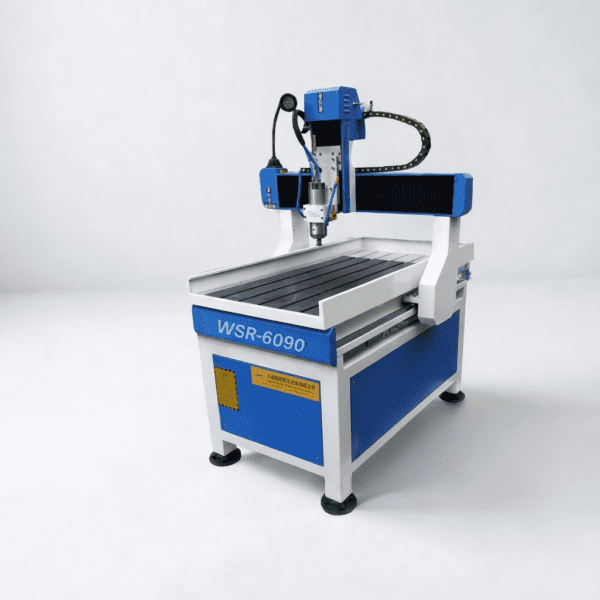

✅CNC Router Machine 6090 – High-Precision Desktop CNC Engraver for Wood, Metal, Acrylic & More

The CNC Router Machine 6090 is a compact, high-performance CNC engraving and milling machine designed for precision cutting, carving, and drilling. With a working area of 600x900mm, this versatile CNC router is ideal for woodworking, metal engraving, acrylic cutting, PCB prototyping, and custom signage.

Equipped with a powerful 1.5kW–2.2kW spindle motor, high-precision ball screws, and linear guide rails, the 6090 CNC machine delivers accurate and repeatable results on a wide range of materials, including wood, MDF, acrylic, PVC, plastic, soft metals (like aluminum and copper), and foam.

Whether you’re a hobbyist, small business owner, or professional fabricator, the CNC 6090 offers reliable performance, easy operation, and compatibility with popular CAD/CAM software like ArtCAM, VCarve, and Mach3.

---

✅ Key Features:

• Large Working Area: 600mm x 900mm cutting bed with optional Z-axis height (up to 200mm)

• Powerful Spindle: Water- or air-cooled spindle up to 2.2kW, 24,000 RPM for fast, clean cuts

• Precision Components: Ball screw drive and linear guide rails for high accuracy

• User-Friendly Control: Compatible with Mach3, DSP, or NCStudio controllers

• Versatile Applications: Perfect for 2D/3D engraving, cutting, and milling

• Material Support: Works with wood, acrylic, PVC, aluminum, copper, PCB, and more

---

🎯 Applications:

• Custom woodworking and furniture carving

• Sign making and advertising board engraving

• Jewelry and nameplate fabrication

• Prototype design and circuit board milling

• Acrylic and soft metal cutting

---

🔍 Why Choose the CNC Router 6090?

• Compact desktop CNC ideal for small workshops

• Excellent balance of size, power, and affordability

• Supports a wide range of industries and creative projects

• Easy to upgrade and maintain for long-term use

---

📦 Stepper CNC Router for Sale – Get the Best Deals

Looking to buy a high-quality stepper CNC router at a competitive price? We offer a wide selection of models suitable for woodworking, signage, and industrial applications. Contact us for specifications, pricing, and customization options.

🔍 Key Features:

• Motion Control: Powered by stepper motors and precision drivers (e.g., YAKO), ensuring smooth and accurate axis movement.

• Structure: Built with a heavy-duty welded steel frame for vibration-free performance and durability.

• Spindle: Equipped with air- or water-cooled spindles, typically 3.5 kW or higher, operating up to 24,000 RPM for high-speed cutting.

• Working Area: Common sizes include 1300×2500 mm (4×8 feet), with Z-axis depths up to 200–300 mm.

• Drive Mechanism: Uses helical rack and pinion or ballscrew systems on the X, Y, and Z axes for smooth linear motion.

• Controller: Operates via DSP handheld controllers (e.g., RichAuto A11) or PC-based systems with Mach3 or similar software.

• Guide Rails: Features HIWIN linear rails for high precision and long service life.

• Table Type: T-slot or vacuum table for flexible material holding.

• Software Support: Compatible with G-code and works with popular CAM software like ArtCAM, VCarve, Aspire, and Fusion 360.

---

✅ Advantages:

• Cost-effective automation for woodworking and signage industries.

• High accuracy and repeatability suitable for both simple cuts and complex 3D carvings.

• Easy to operate and maintain with widely available components.

• Ideal for cabinet making, furniture design, signage, prototyping, and custom woodwork.

Overall, Woodworking CNC Router Machine have revolutionized woodworking by offering efficiency, precision, and the ability to create intricate designs that were previously difficult to achieve manually. Moreover, Wood CNC Machine can work with a wide range of wood types, densities, and sizes. Furthermore, they are used in furniture manufacturing, cabinetry, sign-making, and decorative woodworking.

Fill Enquiry Form for Woodstar CNC Router Machine 1325 Price and to know more about CNC Router Machines.
