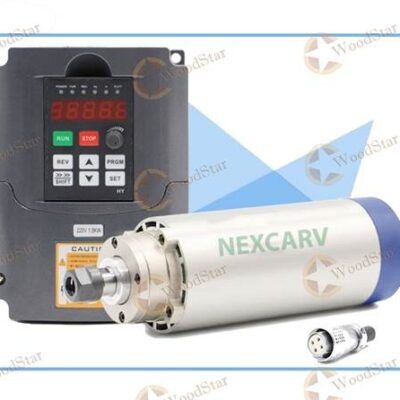

1.5kw Air cooled Spindle (ER16), VFD, Spindle bracket

30,000.00 26,000.00

  • 220vAC 1.5kw ER16 Air Cooled Spindle Motor 80mm 4 bearings
  • 220v 1.5kw inverter/VFD
  • 80mm spindle bracket

11 in stock

Description

 Product Package:

  • 220vAC 1.5kw ER16 Air Cooled Spindle Motor 80mm 4 bearings
  • 220v 1.5kw inverter/VFD
  • 80mm spindle bracket

1.5kw Air cooled Spindle

1.5kw Air cooled Spindle (ER16)



Check out : ER11 Spindle

Basic parameters of 1.5kw Air cooled Spindle:

  • Size: 80x198mm (Body diameter:80mm; Length:198mm)
  • Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
  • Cooling: Air cooling
  • Power Interface: Optional KC20-4 pins waterproof air plug. The air plug marked “1 “,”2″,” 3″,” 4″, “1 “,”2 “,”3” were connected to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle “4” connecting to GND, promised personal safety!!)
  • Power: 1.5kw (1HP=0.735kw)
  • Voltage: 220vAC (If you need 110v/380v spindle, please leave message to us, thank you)
  • Current: 6A
  • Frequency: 0-400Hz
  • Speed:  0-24000rpm
  • Runout Off: 0.01mm
  •  Diameter(mm): 80
  • Bearing Type: 2X7004C P4 DT and 2X7002C P4 DT
  • Full sealed angular contact bearings
  • Collet: ER16
  • Clip Knifediameter: 10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
  • Air Cooling ER16 collet chunk
  • Grease Lubrication

Main Application of 1.5kw Air cooled Spindle:

Engrave for wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone board(ABS)and etc non-metal, also can engrave on gold, silver, copper, aluminium, Pb etc soft metal surface working.

1.5kw Air cooled Spindle (ER16)



Advantages:

  • P4 fully sealed angular contact bearings ,2×7004C P4 DT &2×7002C P4 DT, increase spindle life.
  • Longer length makes the torque bigger, more powerful.
  • Careful assembly make the spindle more precision.
  • Precision 0. 01mm.Coaxial degree less than 0.0025mm
  • Shipment within 4 days, promise the delivery time.
  • We are the spindle manufacturer; we offer only best quality and best price to you.
  • Pay attention: The spindle size is 80x198mm, bigger torque.
  • The voice of the spindle is extremely low, almost no vibration.

Difference between ceramic ball bearings and Steel ball:

1.5kw Air cooled Spindle ceramic ball bearings

  • Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
  • Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using.
  • Ceramic ball bearings have low friction, low noise and long service life.
  • If you want to use the spindle for aluminium, hard wood, then ceramic ball bearings better than steel ball bearings.



Inverter / VFD:



1.5kw Air cooled Spindle (ER16), VFD

Basic Parameters:

  • Inverter Type:Huanyang 220v 1.5kw
  • Input Voltage: 220V (+/-15%)
  • Output Voltage: 220vAC
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz
  • Input Phase: 1 or 3 phases
  • Output Phase: 3 phases
  • Warranty: 1 year from the date you purchased

1.5kw Air cooled Spindle (ER16), VFD, Spindle bracket



Features:

  • PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability.
  • Easy PLC function can realize 16 legs of speed and inverter control function.
  • RS485 communication port, adopting standard international MODBUS main circuit control.
  • With extremely strong anti-jamming capability
  • Low output ratting torque0.5HZ-150%, low speed running ability.
  • Carrier adjustable by 16KHZ, completely soundless working environment.
  • Broad voltage working area, normal running in 304V-456V.
  • Auto voltage regulation (AVR) technique, for ensuring the inverter load capability.
  • Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes.
  • With perfect error protection and short circuit starting protection capability.
  • Dead-time compensation and auto torque slip compensation function can realize 180% high torque output at low frequency 0.25Hz.
  • Unique EMC design can minimize inverter’s pollution to power.
  • Overall reinforcement layer to suit all kinds of harsh environment.

Advantages:

  • Original Huanyang inverter, easily for using
  • Control mode is SPWM, it is quite easy to use and convenient
  • Protection functions are strong,
  • Fin over-heat protection,
  • Overload protection,
  • Fuse protection,
  • Restart after instant stop, stall protection.
  • Powerful function
  • Low price



Application:

winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuge and other speed control machines.

Spindle bracket:

1.5kw Air cooled Spindle (ER16), VFD, Spindle bracket



  • Cast aluminium fixture is high quality aluminium, which is casting with a special manufacturing process, compared with ordinary aluminium, this product has toughness, strong shock resistance, high hardness and strong antioxidant activity.
  • Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.



Basic Parameters:

  • Diameter:  65mm
  • Material: Cast Aluminium



Features:

  • Compared with the aluminium profile fixture, the accuracy is much higher, and it is hard to deform.
  • Inner wall is smooth, outer walls is sandblasted, relatively fine uniform, but not smooth.
  • Cast aluminium fixture is much heavier than aluminium profile fixture.

spindle features 1.5kw Air cooled Spindle (ER16)





1.5kw Air cooled Spindle (ER16) 1.5kw Air cooled Spindle (ER16) 1.5kw Air cooled Spindle (ER16) 1.5kw Air cooled Spindle (ER16), VFD

Preparations before use:

  • Spindle working environment temperature is usually -10 ~ 40.
  • Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

Use Correctly:

  • 1.5kw Air cooled Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter’s specifications and parameter settings need match spindles parameter. (Because of high-speed grease inside the bearing state will change, when you get the spindle, maybe the noise sounds not normal. Please run it 30 minutes or even more, the noise will be normal.)
  • Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
  • During normal operation, 1.5kw Spindle Motor often encounters the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust. If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
  • Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

1.5kw Air cooled Spindle (ER16), VFD, Spindle bracket



Care and Maintenance:

  • Spindle frequency power supply connected rated voltage, it should be consistent with the technical parameters of the spindle; speed can be adjusted by changing the frequency, and voltage is proportional to the change.
  • Spindle being not used; spindle appearance should be oiled. Plus, the shaft protection device, put in a dry place.
  • To replace the spindle bearings, certain professional and technical personnel should be replaced. Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.



Water-cooled spindle and Air-cooled Spindle differences:

  • Cooling in different ways: water-cooled spindle motor uses water cycle to cool the heat generated after the high-speed rotating spindle, whereas air cooled spindle motor uses fan-cooled approach for cooling.
  • Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
  • Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
  • If you need use for metal, hard wood, granite, stone, you can choose metal spindle, then metal spindle is much better than wood spindle.
