Description

 Product Package:

• 1 PCS & 220V/380V 5.5KW FuLing Inverter / VFD H110 Series ( Vector Type 0-1000Hz)

Product Description

Basic parameters:

• Power : 5.5kw
• Input Voltage : 220v/380v
• Current : 23A / 13A
• Output Voltage : 0~220v/380
• Input Frequeny: 50/60Hz
• Input Phase : 1Ph /3Ph  (220v single phase input)
• Output Frequency : 0~1000Hz
• Output Phase : 3PH
• Control Way : V/F control; Vector control

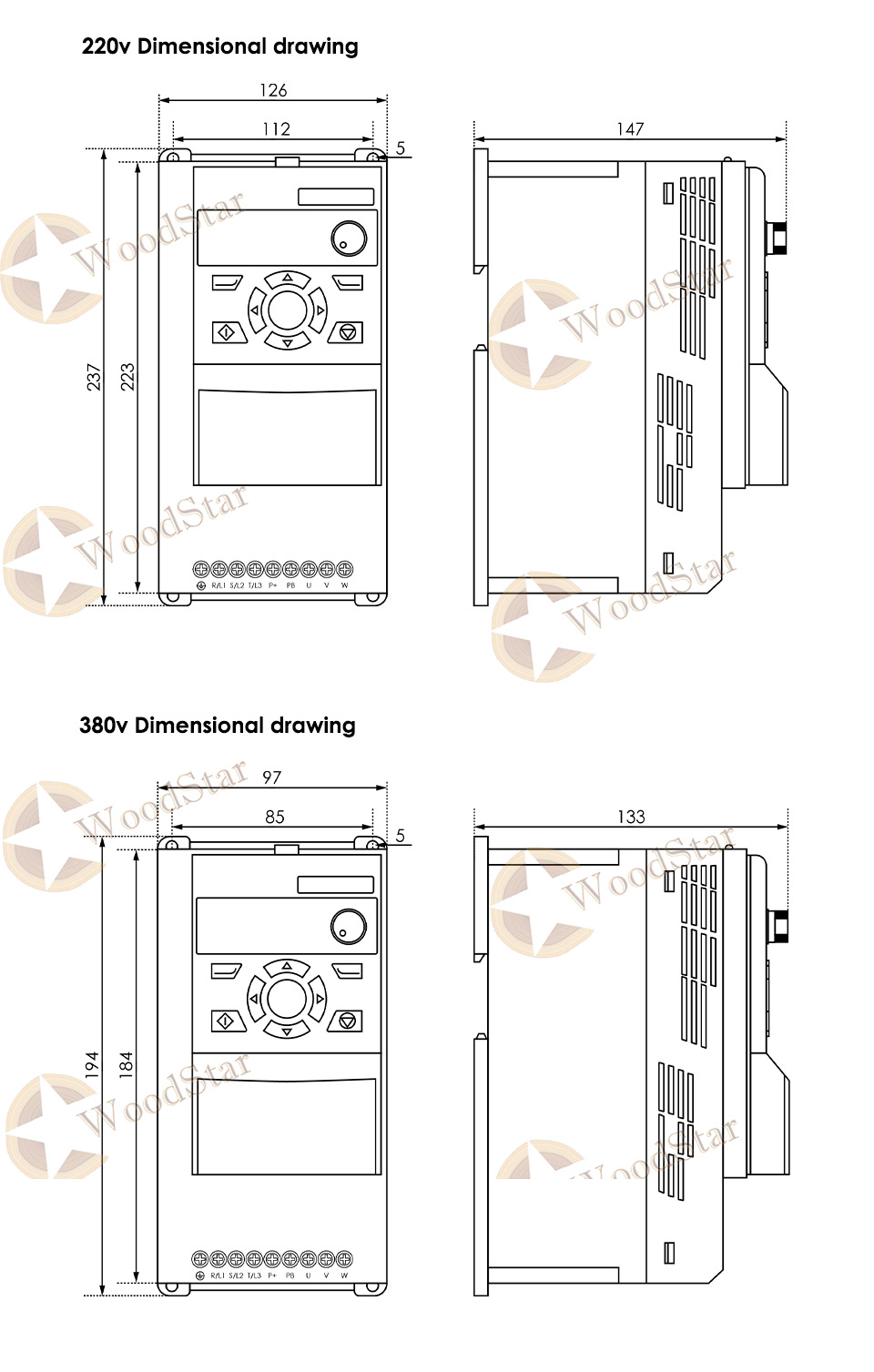

Dimensional drawing of the Inverter:

Characteristics:

• One machine for multiple purposes: applicable to asynchronous motor, permanent magnet synchronous motor, single-phase motor.
• High carrier wave: 16kHz maximum, more silent when the motor works.
• Customization: according to industry customization, remove redundant functions, make the cost more reasonable and the quality more stable.
• Integrated design: reduce the number of plates and flying wires, eliminate potential failure points to the greatest extent, and maximize the electrical and EMC performance.
• Bus voltage control: overvoltage control ensures deceleration at the fastest speed, magnetic flux braking realizes rapid deceleration without braking resistance, and undervoltage control realizes instant stop function.
• Adaptive vector control: vector performance, convenience of VF; Motor parameters are not sensitive, and self-learning is not required.
• Independent air duct: no forced air flow through components to improve environmental adaptability.
• Exquisite thermal design: compact volume, convenient installation.
• Simple use: select the terminal source according to the required function to save the number and type of terminals.
• Flexible function: flexible combination of setting value and command, easy to adapt to different applications.
• Wide range vector control: the frequency range is 0~1000Hz, which is suitable for most motors and ensures high performance during high-speed operation.
• Fast current control: high dynamic response speed (15mS), fast starting speed, small speed fluctuation.
