Description

 Product Package:

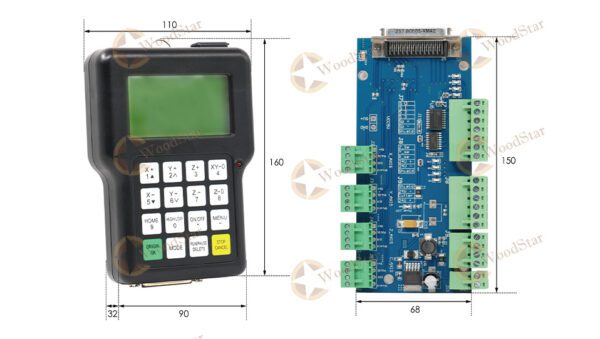

• 1pcs & DSP Handle
• 1pcs & 50 core cable
• 1pcs & USB cable
• 1pcs & I/O wiring board

Product Description

• Color handheld motion control system using TI’s DSP American movement dedicated control chip, and with independent intellectual property
• The right to exercise the core axis hardware carefully designed, and a separate system for computer work offline.
• Among the work without computer intervention. Internal configuration of large-capacity flash memory and can be read external large-capacity memory,
• The unique design ensures maximum compatibility with external USB storage devices, U disk recognition rate, read
• Failure rate. Cheap and reliable interface design makes system maintenance simple and easy maintenance. Since a reliable
• I diagnostic functions, fast troubleshooting. Multi-language switching, localization fast easy to spread. Convenient Jane
• Single firmware upgrade mechanism to remotely upgrade functionality.

Feature:

• Embedded systems.
• USB storage devices read.
• Multiple formats G code and PLT (HPGL) files read.
• G code writing error checking.
• Preflight processing code.
• Parameter setting safety value protection.
• Machine safety size restrictions.
• Self-diagnostic system.

Hardware Resources:

• TI DSP movement dedicated processor
• Hardware core axis movement
• Large-capacity memory (128-1G)
• USB host interface (external memory read)
• USB (maintenance system) from the interface
• Independent keyboard interface (expandable to 64 keys)
• 8 inputs and outputs (expandable to 64 into 64)
• D / A output (optional)
