RichAuto DSP A18 Offline Controller
Original price was: ₹60,000.₹57,754Current price is: ₹57,754.
- 1 pcs & RichAuto DSP A18 Offline Controller (Four-axis Linkage + Multi – spindle Motion Control System)
- 1 pcs & 50 core cable
- 1 pcs & USB cable

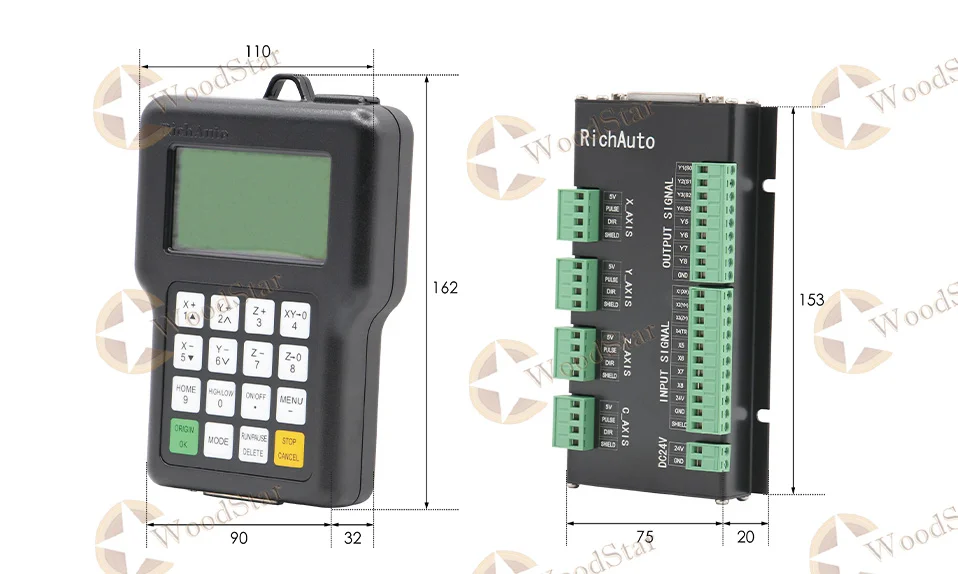

- 1 pcs & I/O wiring board
6 in stock
Description
Product Package:
1 pcs & RichAuto DSP A18 Offline Controller (Four-axis Linkage + Multi – spindle Motion Control System)
1 pcs & 50 core cable
1 pcs & USB cable
1 pcs & I/O wiring board
Product Description
ProductA11 (Three – axis Linkage Motion Control System)
ProductA12 (Plasma Cutting Motion Control System)
ProductA18 (Four-axis Linkage + Multi – spindle Motion Control System)
RichAuto is CNC motion control system,it can be widely applied to machinery, advertisement, woodworking, mold engraving machine, laser, flame, plasma cutting machine, and so on in the machine control field.
RichAuto make DSP as the core control system, high-speed processing operation is the microcontroller, PLC systems can’t match; Use embedded structure, high degree of integration, strong stability, easy to installation and operation; U disk support, removable storage card reader, with USB Interface, high speed transfer, plug and play the full realization.
Feature:
- Adopting position control mode, support 3-ais and 4-axis linkage motion control, double Y drive.
- Standard with 8 Input/Output interface board.
- Support various processing format, such as G code, PLT, bitmap and DXF etc.
- Intelligent memory function, support power failure protection and breakpoint processing function.
- Support portable storage mode function.
- Multi-coordinate memory function. Provide 9 work coordinates system, the user can switch among the 9 coordinates, each coordinate system can save a process origin information.
- Support adjusting spindle frequency during processing. The spindle frequency from 0 to maximum frequency is divided into 8 gears, 1-8 gear can be processed directly adjust up and down without suspend processing.
- Support adjusting speed ratio during processing. Users can adjust the speed ratio from 0.1-1, ascending or descending per 0.1 numerical.
- Simple manual operation mode. Including “Continue, Step, Dist”, manual operation becomes simpler and more convenient.
- Support M, F code and other expanded codes, special code can be customized according to actual request.
- Built-in 512 Mb memory. Communication by USB interface.
- Unique handheld form to realize holding by one hand. Liquid crystal display and 16 buttons make operating intuitive and flexible. No longer dependent on the computer to realize off-line operation.
- Self-test function, system supports I/O signal detection capabilities to make remote maintenance easy.
- Support multiple languages, such as Spanish, French, Arabic, etc.
- System supports automatically dynamic upgrading that make remote operation and remote maintenance convenient.
Advantage:
- 4-axis 4-linkage motion control mode.
- Standard 8-in 8-out IO terminal block.
- Support 9 workpiece coordinate systems and 8 breakpoint saving positions.
- Support floating tool setting, fixed tool setting, tool setting position, tool setting speed, etc.
- Support rotation axis free mark (ABC optional)
- The 4th axis can be set as normal axis or rotary axis.
- Support manual high/low speed switching, fine adjustment, distance setting and other functions.
- Support XYZ axis driver, frequency converter, emergency stop, hard limit and other alarm functions.
- Support the functions of continuous carving, breakpoint saving, power down memory, etc.
- Support special function requirements of array, milling plane, zoom, row selection and automatic classification.
- Support parking status and location setting.
